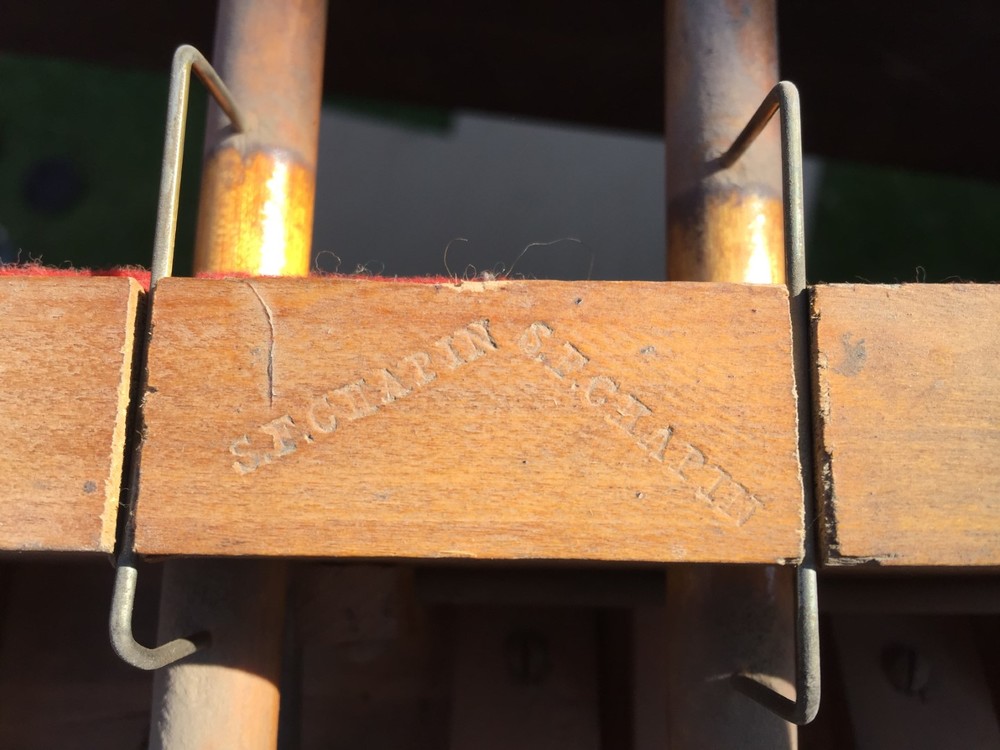

- "S.F. Chapin" Stamped on Action (see photo).

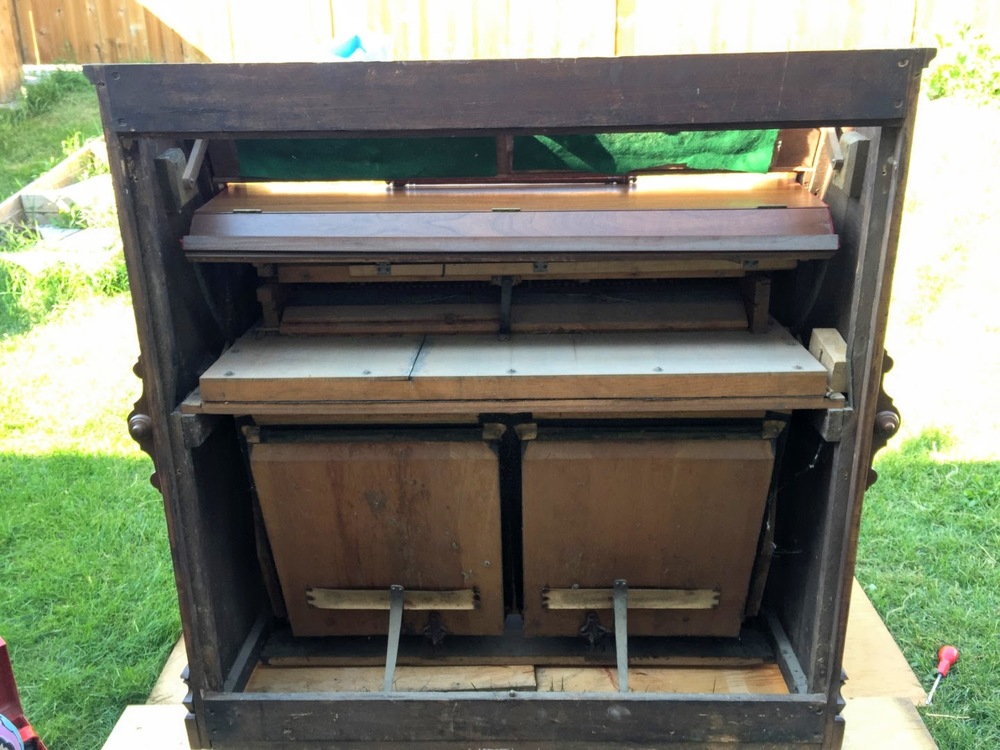

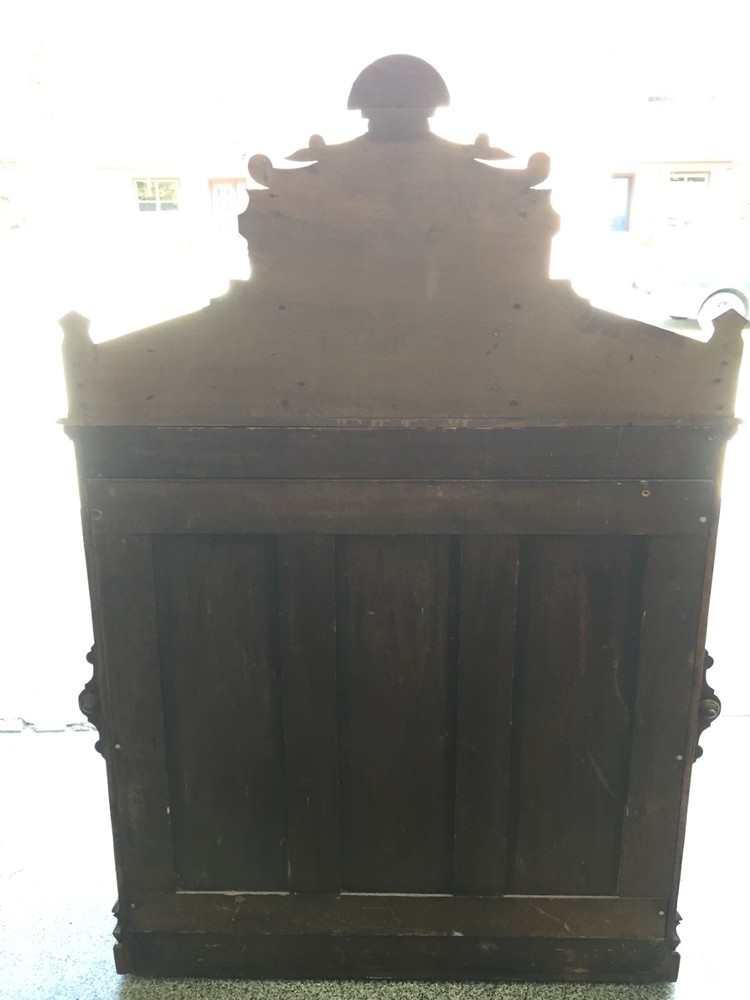

- Exhausters located behind reservoir, accessible from the back panel.

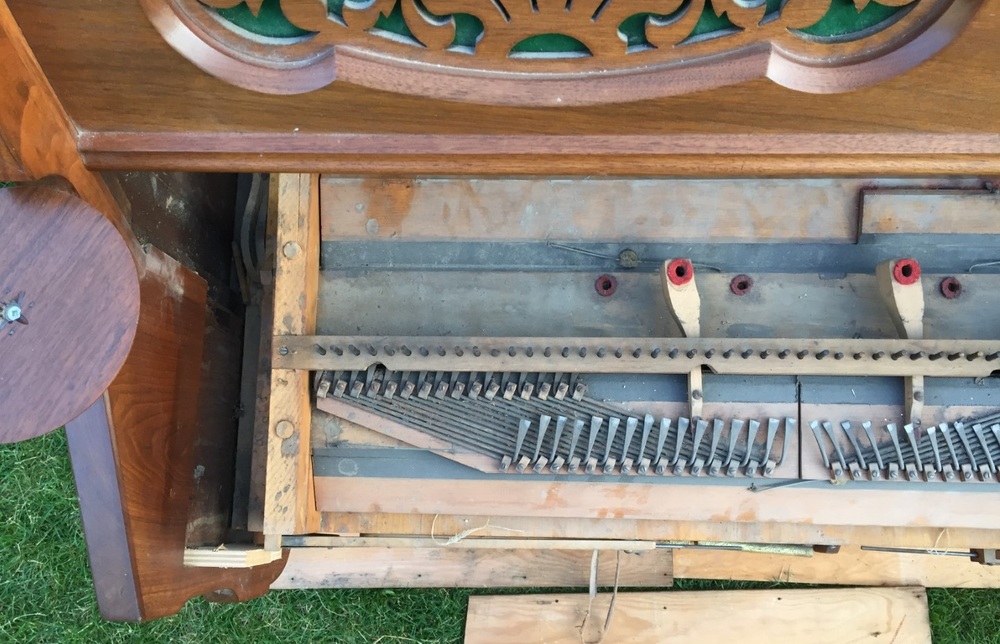

- 1.5 rows of reeds (2 sets treble, 1 set bass).
- One of the soft stops includes a mute on a mute.

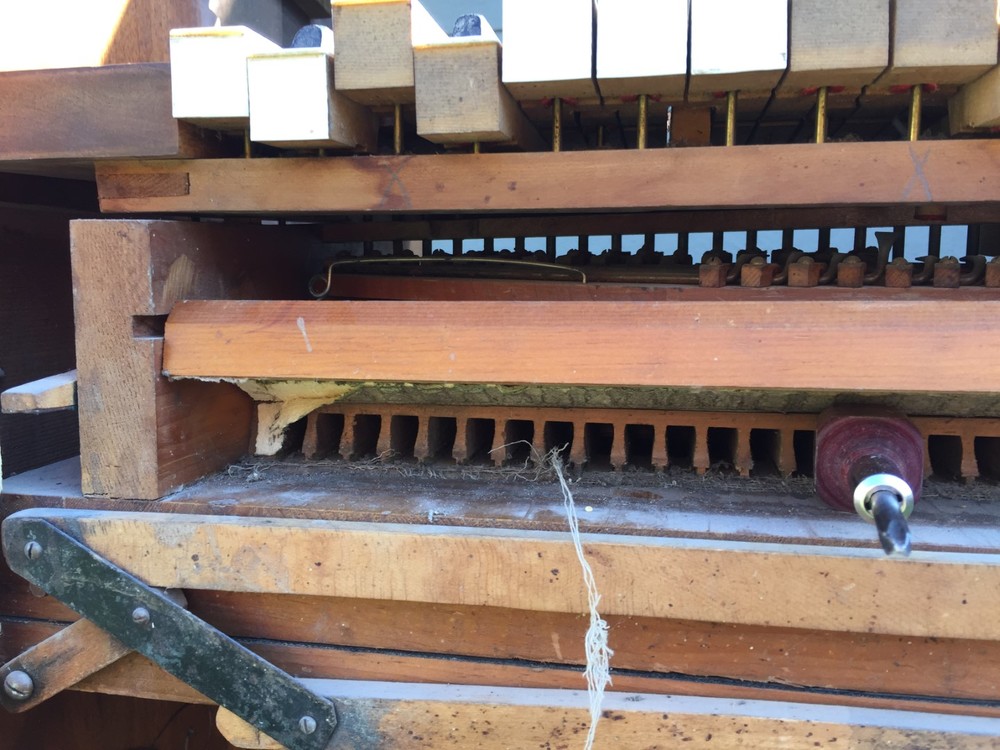

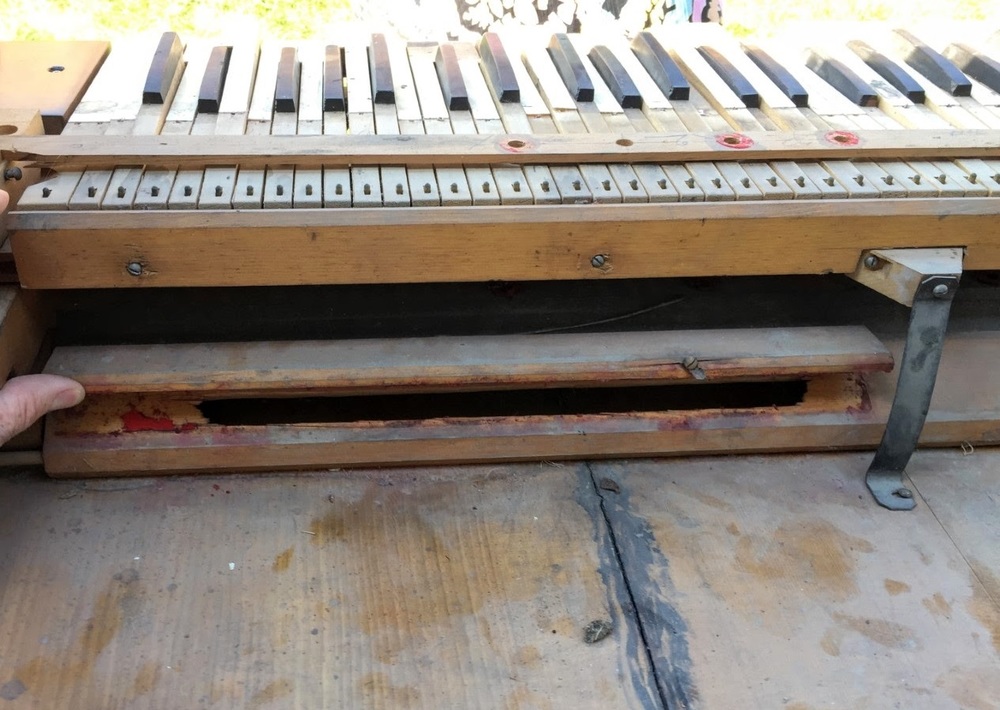

- Modular assembly, no tools to open the case and remove the action for servicing.
- Weight measured at 220 pounds.
- Reed width measured at 10.7 mm.
- Pitch A446.

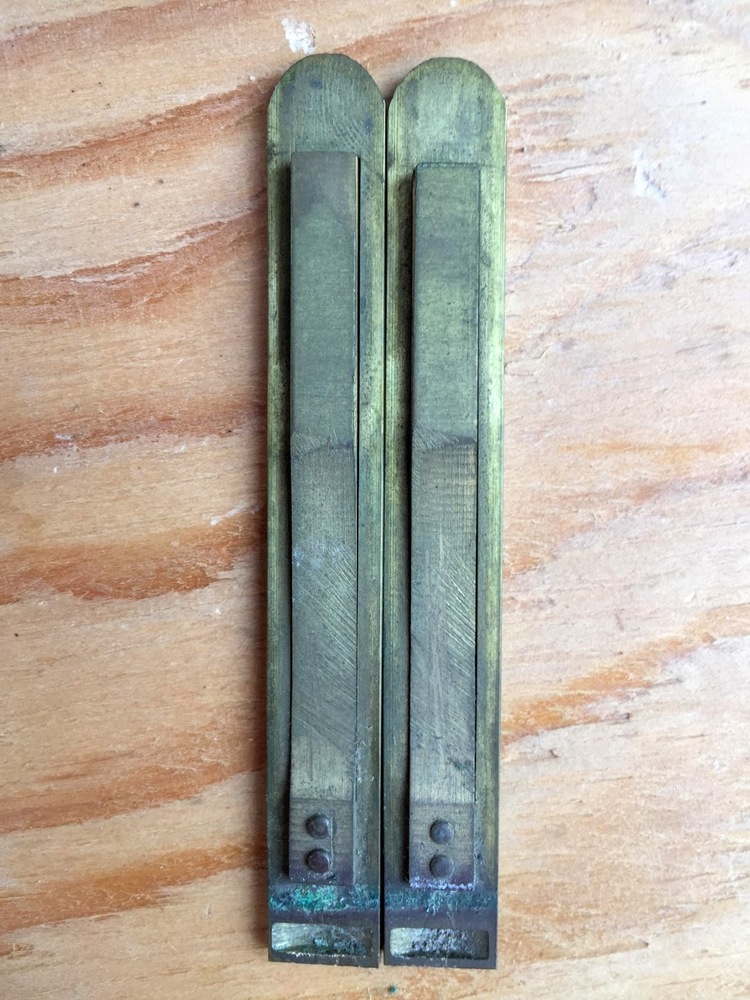

- Reed dimensions: 0.423" wide x 0.088" thick.
- Date estimated based on other Uxbridge organs in database. No date found inside.
See link for more details:
https://dohertyreedorgan.blogspot.com/
- Exhausters located behind reservoir, accessible from the back panel.
- 1.5 rows of reeds (2 sets treble, 1 set bass).
- One of the soft stops includes a mute on a mute.
- Modular assembly, no tools to open the case and remove the action for servicing.
- Weight measured at 220 pounds.
- Reed width measured at 10.7 mm.
- Pitch A446.
- Reed dimensions: 0.423" wide x 0.088" thick.
- Date estimated based on other Uxbridge organs in database. No date found inside.
See link for more details:
https://dohertyreedorgan.blogspot.com/
Information | |
---|---|
ROS Reg No. | 6624 |
Date Registered | 11/20/2020 |
Views | 1719 |
- | |

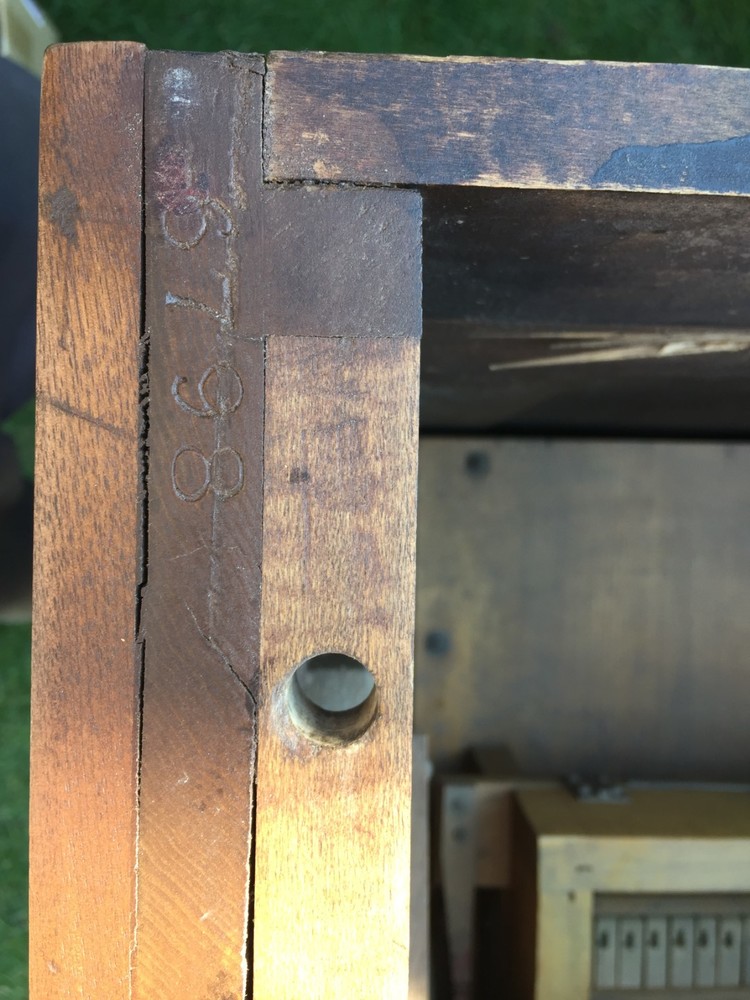

Serial | 6798 |
Manufactured Date | 1898 +/- |

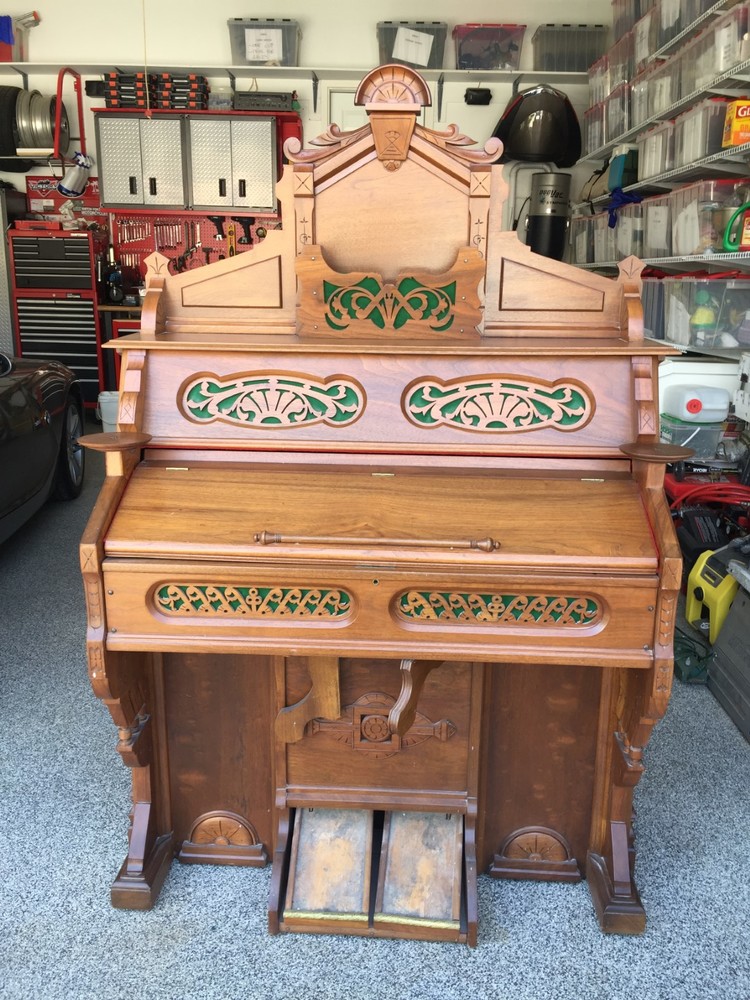

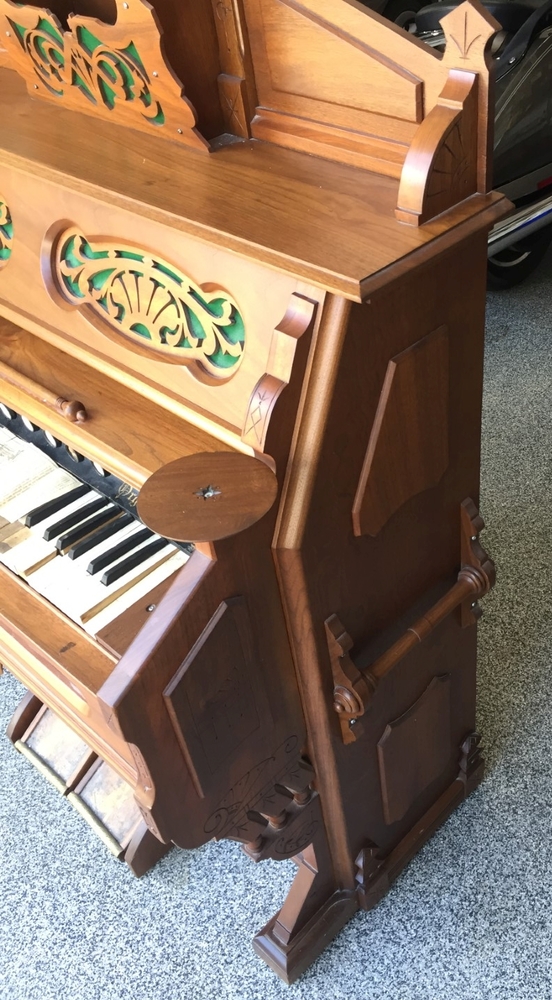

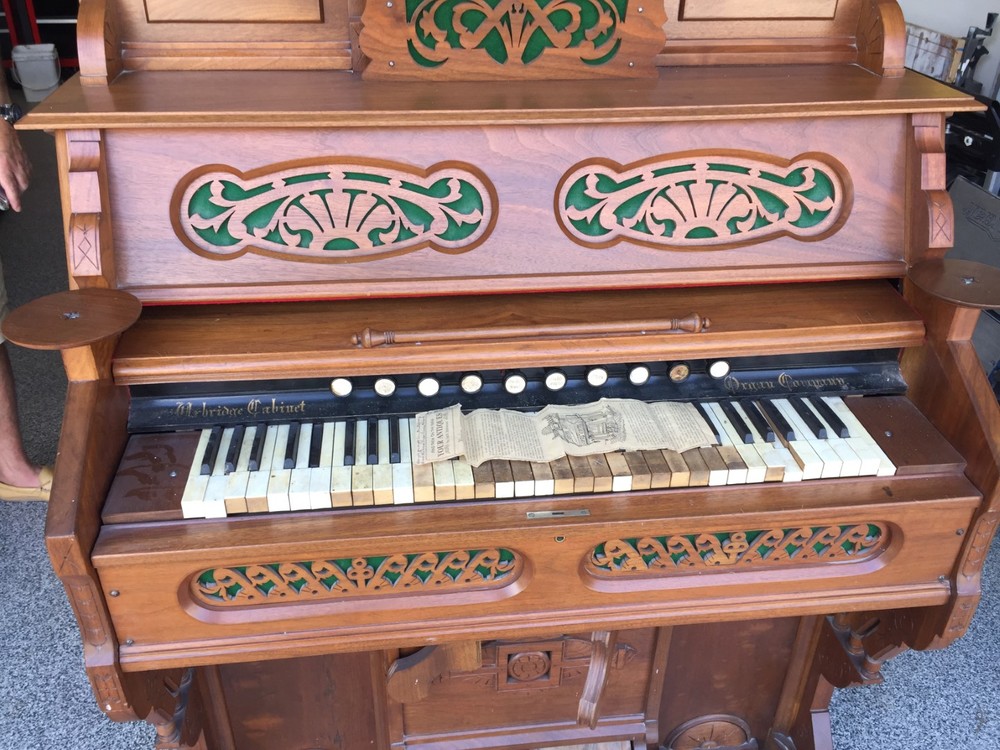

Case Style | Parlor (with or without top) |
Maker Location | |
Model | |
Knee swells | Yes |
Wood | |
Keys | 61 |
Manual(s) | 1 |
Range | F-F |
Stops | 10 |
Pump method | Pumped by Foot |
Stops |
---|
[missing] |
[missing] |
Bass Coupler |
[missing] |

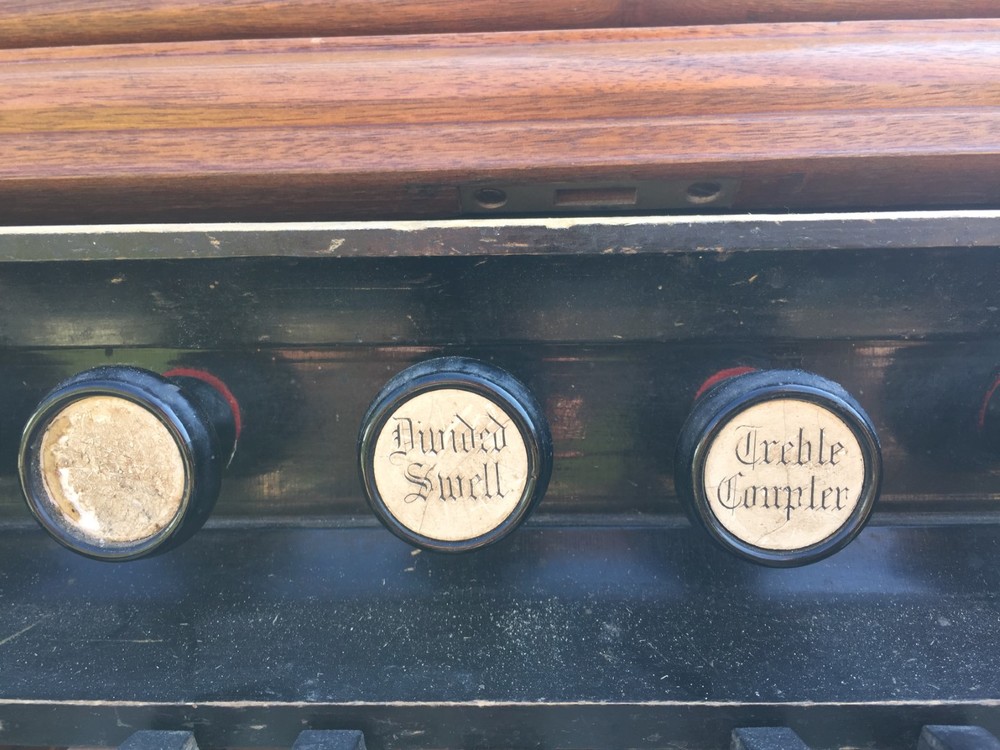

Divided Swell |
Treble Coupler |
Oboe |
Dulciana |
[missing] |

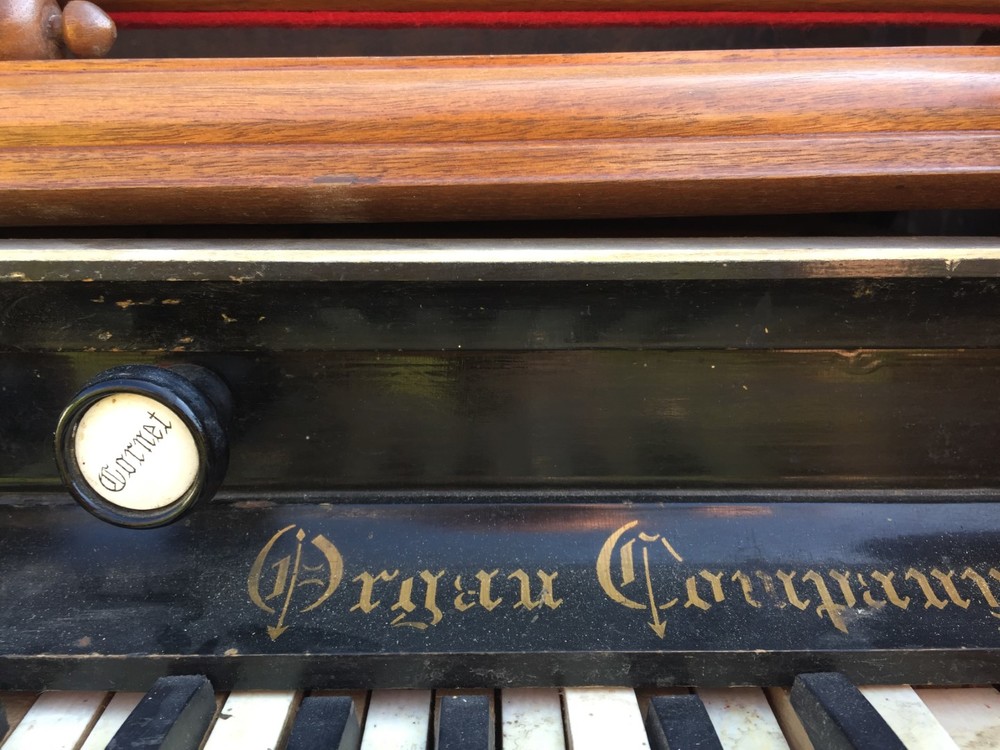

Cornet |
